5G turnable antenna

5G antenna key data

Customer: MiWire Group ApS, Denmark
Website: https://miwire.net/miwire-roudem/
IoT application: Plug-and-play outdoor router with automatic directional antenna for LTE/5G, WiFi and GNSS
Radio technology/radio protocols: LTE (4G), 5G, WiFi, GNSS
Frequency ranges: 690 – 2700 MHz , 3400 – 3800 MHz, 2400 – 5000 MHz, GNSS
Antenna types: Vivaldi directional antenna (rotatable) plus 4G/5G broadband, MIMO-capable, plus dualband Wifi , plus GNSS
Task: Optimisation of bandwidth and MIMO performance. Mechanical optimisation of the rotatable antenna unit

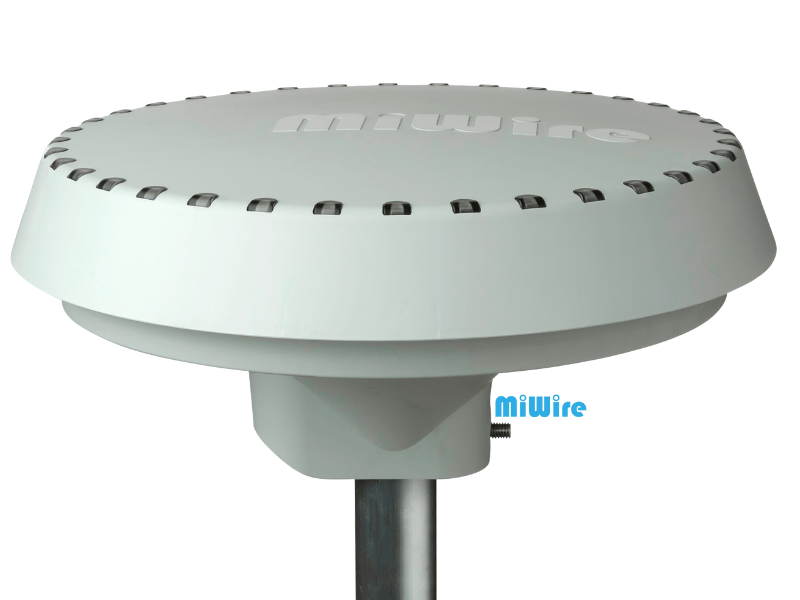

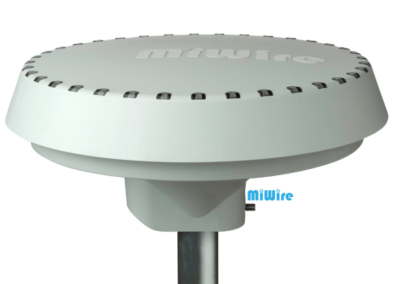

Special features: Automatically alignable antenna for maximising reception performance

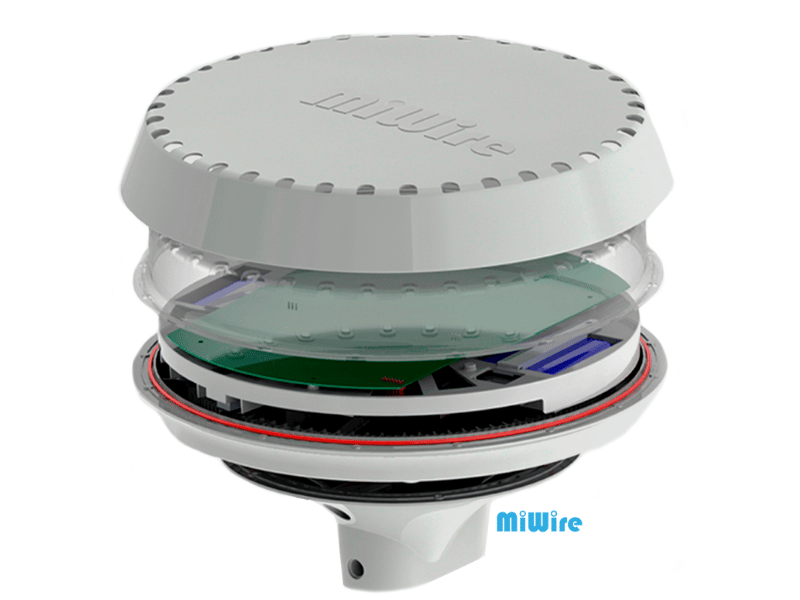

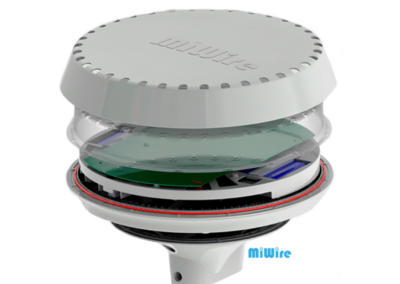

MiWire RouDem combines an intelligent, self-rotating directional antenna with a robust outdoor modem. The goal: maximum data rates even in locations with weak network coverage. The challenge was to optimise the antenna architecture, especially the Vivaldi directional antenna, in order to increase bandwidth and improve MIMO reception for 4G and 5G.

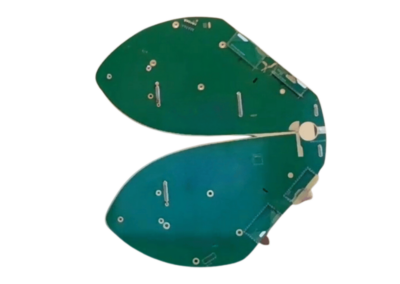

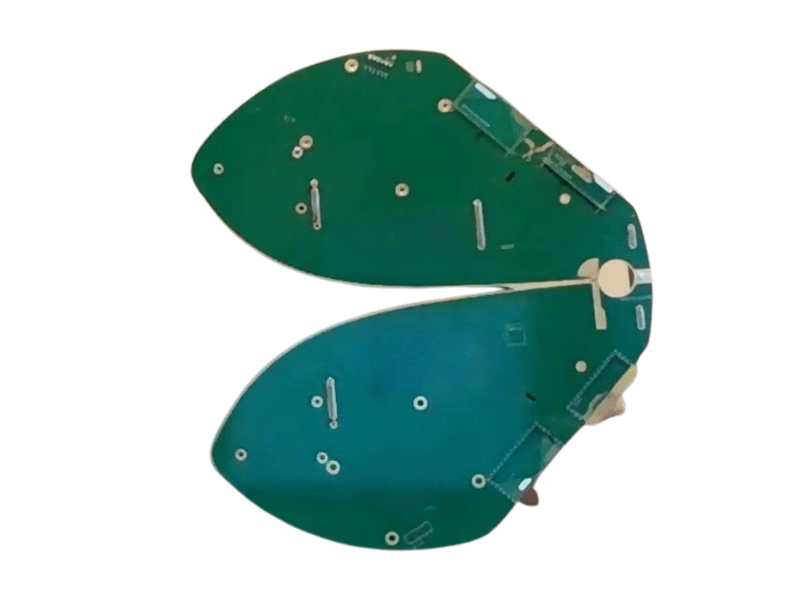

In the first step, we redesigned the Vivaldi antenna mechanically and electrically. Through targeted adjustments to the geometry and choice of materials, we were able to significantly expand the usable bandwidth. This enables coverage of all relevant LTE and 5G bands with just one rotating directional antenna.

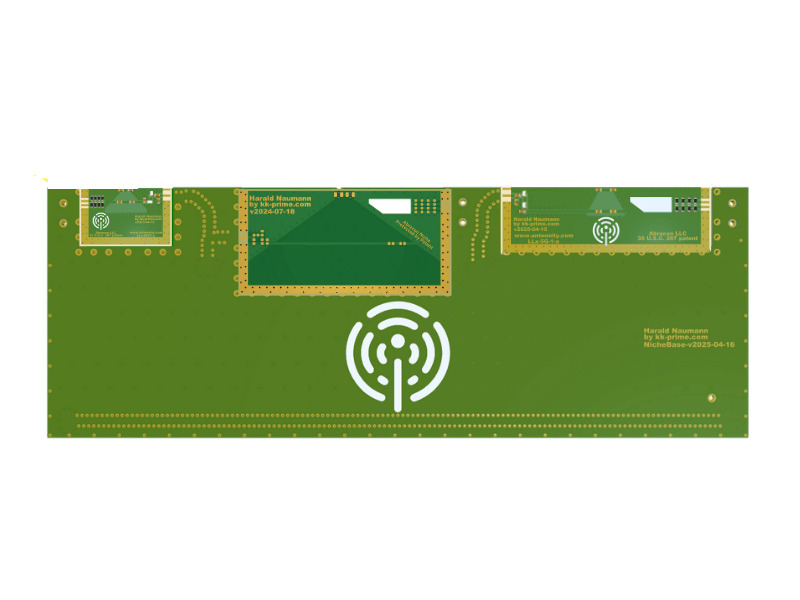

For MIMO functionality, we relied on broadband chip loop antenna modules based on the Abracon patent. These antennas not only offer excellent broadband performance, but can also be integrated in a space-saving manner and are insensitive to mechanical tolerances. This improves reception quality and ensures stable data rates even under difficult outdoor installation conditions. Another focus was on optimising the mechanics of the rotatable antenna unit.

Advantages for Miware customers:

Maximum bandwidth: Optimised Vivaldi antenna covers all LTE/5G bands.
Improved MIMO reception: Chip loop antennas increase data rates and connection stability.
Plug-and-play: Automatic alignment, easy installation, no expert knowledge required.
Robustness: Weatherproof, UV-resistant, designed for continuous outdoor use.
